Header 2 Horse Straight Load Float 2hsl Sd
2HSL-SD
Build to order

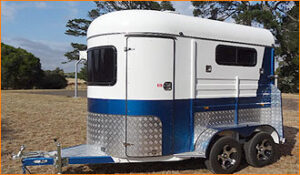

2 Horse Straight Load Float Standard Deluxe

$21,995.00

Factory direct price.

HORSES

2

LOAD TYPE

Straight Load

The 2 Horse Straight Load Float Standard Deluxe is a practical and well-equipped choice for riders who prefer the simplicity of a traditional straight-load configuration. Designed to comfortably transport two horses while providing useful storage and added conveniences, it’s well suited to regular outings, competitions, clinics and everyday travel.

The straight-load layout provides each horse with its own dedicated bay, with protective padding and robust flooring helping create a comfortable travelling environment. Thoughtfully positioned access makes loading, unloading and attending to your horses straightforward, while dedicated storage provides convenient space for saddles, rugs and other essential gear.

The Deluxe configuration adds useful features that make time away with your horses easier, without moving into the more extensive living facilities of Pinnacle’s kitchen-equipped models. It provides a good balance between straightforward horse transport and the additional comforts riders appreciate when spending a full day away from home.

Built with Pinnacle’s heavy-duty galvanised construction and designed for Australian travelling conditions, the 2 Horse Straight Load Standard Deluxe is a versatile option for riders looking for a durable, easy-to-use two-horse float with a little more than the essentials.

Get a quote
Call 1800 214 334

Finance is available through our finance partner iCredit. Ask us, or call iCredit on 1300 350 118.

Australia wide delivery

Australia wide delivery

2 year frame warranty, 12 months on moving parts

2 year frame warranty, 12 months on moving parts

Download spec sheet (PDF)

Specifications

Windows & Doors

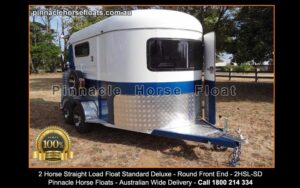

  • Front window – 1220 x 610mm
  • Roof – special moulded FRP 3475 x 1750mm
  • Side windows – 2 on each side

Wheels & Tyres

  • Heavy duty 18R14c light truck tyre

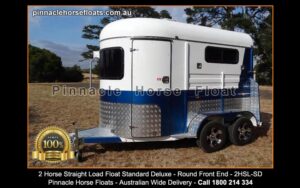

  • Non recessed – mudguard checker plate – 1.2mm aluminium
  • Spare wheel x 1
  • Wheels 14″ alloy rims

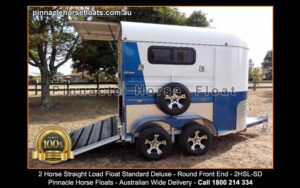

Axles & Suspension

  • Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
  • Brakes – double axle electric brakes with breakaway system
  • Nuts and bolts – all stainless steel
  • Suspension – 6 leaf roller rocker tandem spring axles

Chassis & Frame

  • Body panels galvanised 1.5mm
  • Double dipped galvanised RHS 4mm chassis
  • Frame double dipped RHS 2.5mm

Lighting

  • Rear lights – LED
  • Retro reflectors x 8 units
  • Side lamps – 6 LED lights
  • Trailer plug – square seven pin

Dimensions (L x W x H)

  • Ramp door – 1800 x 1210mm
  • Rear upper door – 1800 x 1065mm
  • Size of side door – 1755 x 615mm
  • Bay length – 1830mm
  • Bay width – 700mm
  • Body dimensions – 3075 x 1750 x 2230mm
  • Inner dimensions – 3050 x 1700 x 2155mm
  • Overall dimensions – 3925 x 2290 x 2590mm
  • Size of bays – 230cm long x 75cm wide

Weight

  • Gross – 3500kg
  • Tare – 1400kg

Standard Inclusions

  • Bracing wheel x 1
  • Drawbar checker plate – 1.2mm aluminium
  • Drawbar safety chain x 2
  • 26mm Composite Flooring
  • High Intensity anti rust strut
  • Hinges For rear door- Special 6mm brass hinges
  • Horse Protection – Fully Padded
  • Painting – Two tone
  • Pedal & Aluminium Step – 1.2mm Decoration Board

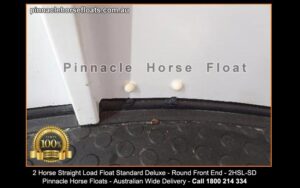

  • Rubber matting for floor – 10mm rubber matting
  • Rubber Matting For Ramp Door – 28mm ribbed rubber matting
  • Rubber Matting for side panels – 6mm Rubber matting
  • Stainless Horse Ring – four
  • Upper Rear and ramp door strut/li>

Get a quote

Request a quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Optional extras

Talk to our team about which features can be added to your float or gooseneck, and which upgrades would be suitable.

More Options
