1Lar 2HSL L6
2HSL-L
In stock

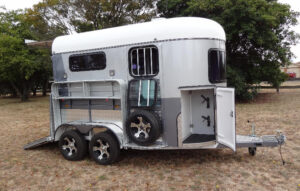

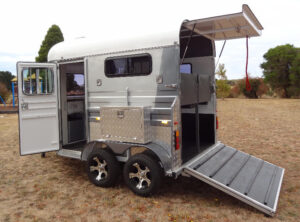

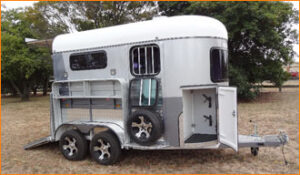

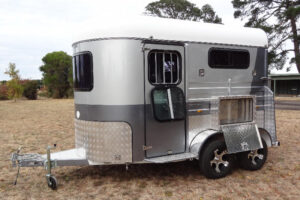

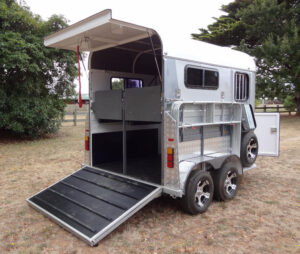

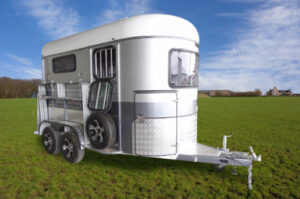

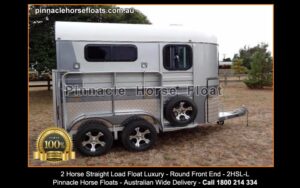

2 Horse Straight Load Float Luxury

$23,995.00

Factory direct price.

HORSES

2

LOAD TYPE

Straight Load

The 2 Horse Straight Load Float Luxury is designed for riders who want the familiar simplicity of a straight-load configuration combined with additional comfort, storage and convenience for days away with their horses.

The spacious two-horse layout provides dedicated bays with protective padding and easy access, creating a practical travelling environment for both horses and handlers. Generous storage keeps saddles, rugs and essential equipment organised and readily accessible, while the additional Luxury features make the float particularly well suited to competitions, clinics and longer days on the road.

With thoughtful details for both horse and rider, this model offers a step up from Pinnacle’s Standard and Standard Deluxe straight-load floats. It provides additional amenities without losing the straightforward, easy-to-use layout that makes a straight-load float an attractive choice for many horse owners.

Built with Pinnacle’s robust galvanised construction and designed for Australian travelling conditions, the 2 Horse Straight Load Luxury combines dependable horse transport with the extra features and finish needed for a more comfortable experience away from home.

Get a quote
Call 1800 214 334

Finance is available through our finance partner iCredit. Ask us, or call iCredit on 1300 350 118.

Australia wide delivery

Australia wide delivery

2 year frame warranty, 12 months on moving parts

2 year frame warranty, 12 months on moving parts

Download spec sheet (PDF)

Specifications

Windows & Doors

  • Front window 1 x 1220 x 610
  • Roof fully moulded
  • Rooftop vents x 2
  • Sliding windows x 2

Wheels & Tyres

  • Heavy duty 18R14c light truck tyre
  • Wheels 14″ alloy rims

Axles & Suspension

  • Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
  • Brakes – full twin axle electric brakes with “Brake Away System”
  • Nuts and bolts – all stainless steel
  • Suspension – 6 leaf roller rocker tandem spring axles

Chassis & Frame

  • Body panels galvanised 1.2mm
  • Double dipped galvanised RHS 4mm chassis
  • Frame double dipped RHS 2.5mm

Lighting

  • Rear lights – LED
  • Retro reflectors x 8 units
  • Side lights x 6 units
  • Trailer plug – square seven pin

Dimensions (L x W x H)

  • Size of side door – 1755 x 615
  • Size of rear upper door – 2020 x 1065
  • Size of ramp door – 2020 x 1210
  • Body dimensions – 3475 x 1750 x 2230
  • Inner dimensions – 3450 x 1700 x 2155
  • Overall dimensions – 4325 x 2270 x 2590
  • Size of bays – 230cm long x 75cm wide

Weight

  • Gross – 3500kg
  • Tare – 1400kg

Standard Inclusions

  • Drawbar checker plate 1.2mm
  • Floor rubber matting – 10mm
  • Fold up side padding to allow for 2 beds
  • Foldable horse fence mounted on side of float
  • Fully built in kitchen cabinets at front of float
  • 26mm Composite Flooring
  • Horse protection frame – fully padded
  • Rear door hitches – 6mm copper hinges
  • Rubber matting for horse door – 28mm ribbed rubber matting
  • Rubber matting inner side panels – 6mm rubber matting
  • Rug Rack- Located At Front Of Float
  • Saddle Box- 1500 Height For 3 saddles
  • Side horse rings x 4
  • Water system with stainless tank, tap and 12 volt pump
